Plug and Play
Free Scheduling Software
For more advance use the Android Advertising Displays come with a piece of free Scheduling Software for displaying different content at different times of the day as well as setting image display durations and transition effects. For example, a restaurant can create three daily schedules; the breakfast menu in the morning, lunch menu in the afternoon and the dinner menu in the evening. If you prefer to keep it simple you can update the screen directly without using the software. To download the Scheduling Software for this range click here.
Scrolling Text
Optional Network Upgrade
For a small charge you can also upgrade your screen to be networked, allowing you to remotely update your screen via LAN, Wi-Fi or 3G. Take advantage of our scalable Queen’s Award winning solution by upgrading your standalone display to a network solution without the need for any additional hardware.
Designed for Public Spaces
The Android Advertising Displays are fitted with a commercial grade LCD panel with an LED backlight. They have the ability to be in constant use 24/7 for over 70,000 hours. They can be used in both landscape and portrait modes, have no buttons, controls, logos or branding on show and are much brighter than LCD panels found in home TVs or computer monitors. Their tempered glass face, rounded corners, steel enclosure with super slim profile and aluminium surround all add to their captivating tablet-like aesthetics and also protect the internal components from potential damage.
IPS Panel
As well as having a brightness of 450cd/m², much brighter than a domestic TV, the commercial IPS panels accurately display an image’s quality and colour depth at a 178° ultra wide viewing angle. There is no fall-off in colour accuracy and no diversion in contrast ratio at wide angles. From bright sunlight to the most challenging lighting environments these displays are designed to reproduce and maintain the ultimate colour temperature for lifelike images. The panel is also optimised for mounting in either landscape or portrait orientation.
Power Timer
The eco-friendly power timer allows you to assign daily or weekly on and off times for your screen. The ability to power on and off automatically means that the screen is only in use when it needs to be; improving your environmental efficiency.
Internal Locker
Should you need to run the screen from an external source, like a PC or media player, you can do so by using the HDMI input or the VGA and 5mm audio jack inputs. There is also a space to fit a small PC or media player inside the lockable compartment.
Free Integrated Castors

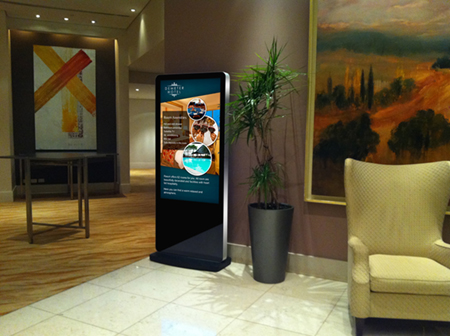

Our Freestanding Digital Posters are a fully portable solution and come with discreet integrated castors, which are also retractable. Easily manoeuvre the display into position then if you prefer you can retract the wheels and use the feet to make sure it stays put.
SPECIFICATION
DISPLAY AREA
618.4×1097.8
UNIT SIZE
747x1850x50
PACKAGE SIZE
865x2000x565
FOOTPRINT
747×400
NET WEIGHT
72kg
GROSS WEIGHT
82kg
POWER CONSUMPTION (W)
100
RESOLUTION
1920×1080
ASPECT RATIO
16:9
BRIGHTNESS (CD/M2)
450
COLOUR
16.7M
VIEWING ANGLE
178°
CONTRAST RATIO
5000:1
VIDEO
HDMI, VGA
AUDIO
Audio Socket (3.5mm)
OPERATING TEMPERATURE
0°C to 50°C
STORAGE TEMPERATURE
-30°C to 60°C
OPERATING HUMIDITY
10% to 80%
STORAGE HUMIDITY
5% to 95%
SPEAKER TYPE
5W, 8Ω (x2)
MEDIA FORMATS
Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)
MEDIA RESOLUTION
1920×1080/1080×1920
INTERNAL MEMORY
6GB
CPU
Duel-Core Cortex-A9 @1.6GHz
GPU
Mali-400 MP4 @400MHz
RAM
1GB DDR3
ROM
8GB NAND
USB
USB2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
WI-FI
802.11b/g/n (Network version screen only)
OS
Android 4.2.2
GRAPHIC ENGINE
OpenGL ES 1.1/2.0, OpenVG 1.1
DISPLAY AREA
682.4×1211.6
UNIT SIZE
813x1960x50
PACKAGE SIZE
1006x2010x613
FOOTPRINT
813×400
NET WEIGHT
120kg
GROSS WEIGHT
136kg
POWER CONSUMPTION (W)
120
RESOLUTION
1920×1080
ASPECT RATIO
16:9
BRIGHTNESS (CD/M2)
450
COLOUR
16.7M
VIEWING ANGLE
178°
CONTRAST RATIO
5000:1
VIDEO
HDMI, VGA
AUDIO
Audio Socket (3.5mm)
OPERATING TEMPERATURE
0°C to 50°C
STORAGE TEMPERATURE
-30°C to 60°C
OPERATING HUMIDITY
10% to 80%
STORAGE HUMIDITY
5% to 95%
SPEAKER TYPE
5W, 8Ω (x2)
MEDIA FORMATS
Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)
MEDIA RESOLUTION
1920×1080/1080×1920
INTERNAL MEMORY
6GB
CPU
Duel-Core Cortex-A9 @1.6GHz
GPU
Mali-400 MP4 @400MHz
RAM
1GB DDR3
ROM
8GB NAND
USB
USB2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
WI-FI
802.11b/g/n (Network version screen only)
OS
Android 4.2.2
GRAPHIC ENGINE
OpenGL ES 1.1/2.0, OpenVG 1.1
Technical Drawings
Signage Software
3 Year Commercial Warranty
All of our products come with a full 3 year commercial warranty as well as lifetime technical support. Our products are commercially graded and designed to run 24/7 in public spaces.
