meeting room display

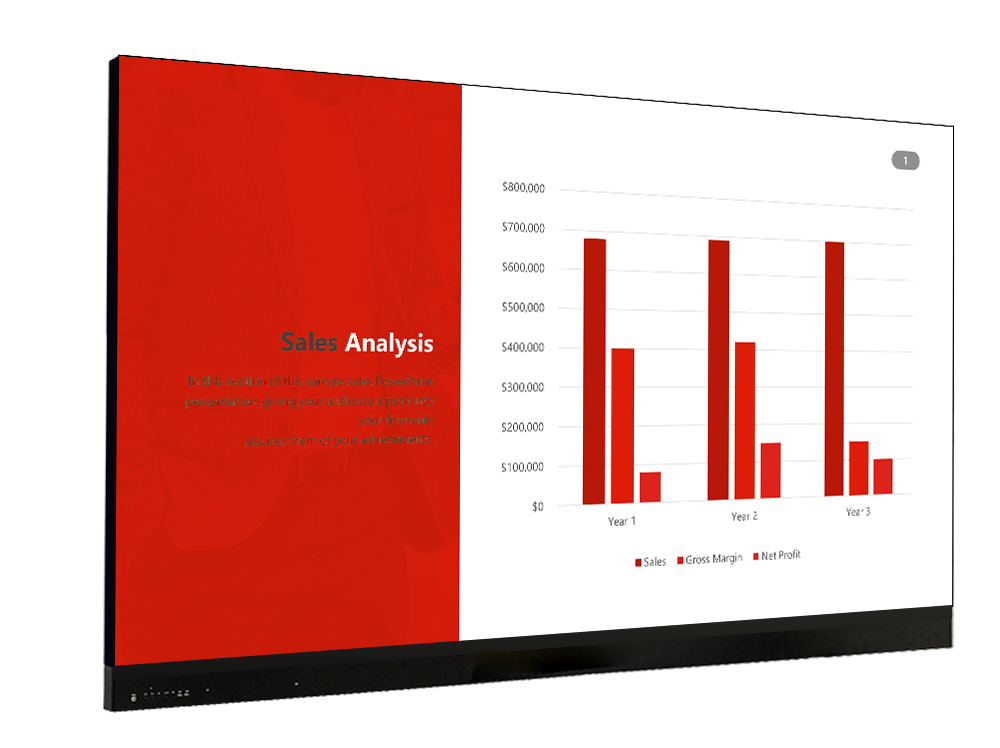

All-in-One Meeting Room Display
The Fine Pitch LED Presentation Video Wall combines the best quality LED technology on the market with a sophisticated Android based PC. This provides an integrated solution for most cases without the need for messy cables or additional devices.
all in one presentation display
Powerful Presentation Tool
Designed with middle to large sized meeting rooms in mind this is the ultimate presentation tool. Wow attendees as you wirelessly mirror and file share between your devices and the presentation screen. Featuring easy access front ports for connecting your laptop, remote video conferencing and multi-window splicing for maximum user engagement.
digital signage water proof ip rated
SMD LED

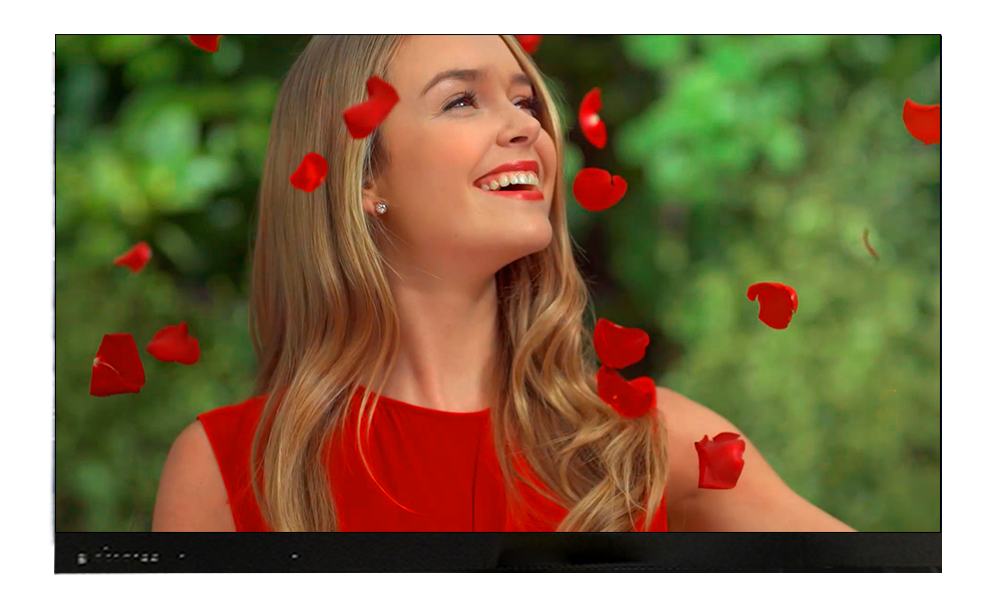

Super Fine HD Pixel Pitch
All the screen sizes available have a full High Definition resolution and a standard 16:9 aspect ratio. This fine pixel pitch, combined with the advantage of not having any unsightly bezels, make these displays the ultimate in premium presentation video walls.
lightweight
Lightweight Slim Design
Despite their large size the Fine Pitch LED Presentation Video Wall has a compact design with a slim depth of just 38.5mm* and a lightweight cabinet for reduced stress on the mounting wall.
*Excludes 220” Model
front maintenance
Front Serviceability
Through an intuitive and easy-to-use maintenance system the LED Video Wall can be serviced from the front of the display. The LED modules can be removed quickly and efficiently for convenient maintenance.
Quick easy install
Easy Installation
Installation of the Fine Pitch LED Presentation Video Wall is quick and easy thanks to its light and compact design. Unlike other LED Video Walls this solution is a complete out-of-the-box display so assembly is much easier than usual. It also comes fully colour celebrated.
digital signage water proof ip rated
Easy access ports
Easy Access Front Ports
The Fine Pitch LED Video Wall has a variety of easy to access controls and ports on the front of the display including a HDMI and 2 x USB ports.
Adjustable Backlight
Adjustable Backlight
The Fine Pitch LED Presentation Video Wall is bright enough for all ambient lighting conditions, but the screen can be adjusted manually to suit user preferences. If your conference or meeting room is quite dark then you can reduce the backlight brightness to improve overall readability.
LED stand
Optional Floor Stand
If you do not have the desired wall space available an optional floor stand can be included to mount the LED Video Wall on.
[fusion_builder_container background_color=”” background_image=”” background_parallax=”up” enable_mobile=”no” parallax_speed=”0.3″ background_repeat=”no-repeat” background_position=”left top” video_url=”” video_aspect_ratio=”16:9″ video_webm=”” video_mp4=”” video_ogv=”” video_preview_image=”” overlay_color=”” overlay_opacity=”0.5″ video_mute=”yes” video_loop=”yes” fade=”no” border_size=”0px” border_color=”” border_style=”solid” padding_top=”0″ padding_bottom=”0″ padding_left=”0″ padding_right=”0″ hundred_percent=”yes” equal_height_columns=”no” hide_on_mobile=”no” menu_anchor=”” id=””][fusion_builder_row][fusion_builder_column type=”1_1″ last=”yes” spacing=”no” center_content=”yes” hide_on_mobile=”no” background_color=”#a1a1a1″ background_image=”” background_repeat=”no-repeat” background_position=”left top” hover_type=”none” link=”” border_position=”all” border_size=”0px” border_color=”” border_style=”solid” padding=”10px” margin_top=”0″ margin_bottom=”0″ animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ animation_offset=”” id=””][fusion_text]

SPECIFICATION

[/fusion_text][/fusion_builder_column][fusion_builder_column type=”1_1″ background_position=”left top” background_color=”” border_size=”” border_color=”” border_style=”solid” spacing=”yes” background_image=”” background_repeat=”no-repeat” padding=”” margin_top=”0px” margin_bottom=”0px” class=”” id=”” animation_type=”” animation_speed=”0.3″ animation_direction=”left” hide_on_mobile=”no” center_content=”no” min_height=”none”][fusion_tabs design=”classic” layout=”horizontal” justified=”yes” backgroundcolor=”” inactivecolor=”” bordercolor=”” id=””][fusion_tab title=”Full Specification – PPCNET-Live” icon=””]
Full Specification

110 Inch
138 Inch
165 Inch
220 Inch

110 Inch

Pixel Pitch (mm)

1.2

Display Area (mm)

2440×1373

Brightness (cd/m2)

100-500

Unit Size (WxHxD mm)

2453x1503x38.5

VESA Holes

400×400/400×600

Net Weight

134kg

Average Power Consumption

850W

Maximum Power Consumption

2,500W
138 Inch

Pixel Pitch (mm)

1.5

Display Area (mm)

3050×1716

Brightness (cd/m2)

100-500

Unit Size (WxHxD mm)

3063x1846x38.5

VESA Holes

600×600/600×800

Net Weight

201kg

Average Power Consumption

1,020W

Maximum Power Consumption

3,000W
165 Inch

Pixel Pitch (mm)

1.9

Display Area (mm)

3660×2059

Brightness (cd/m2)

100-600

Unit Size (WxHxD mm)

3673x2189x38.5

VESA Holes

800×600

Net Weight

282kg

Average Power Consumption

1,040W

Maximum Power Consumption

3,060W
220 Inch

Pixel Pitch (mm)

2.5

Display Area (mm)

4880×2745

Brightness (cd/m2)

100-600

Unit Size (WxHxD mm)

4893x2875x60

VESA Holes

800×600

Net Weight

201kg

Average Power Consumption

1,740W

Maximum Power Consumption

5,120W
LED

Resolution

1920×1080

Aspect Ratio

16:9

Grayscale

14 Bit

Contrast Ratio

5000:1

Viewing Angle

160°

Maintenance

Front Access Only
AV Inputs

Front Inputs

USB x2, HDMI
Power

Input Voltage

AC110~240V (50Hz~60Hz)
Computer

CPU

ARM Cortex A72, Cortex A53, 2.0GHz

GPU

ARM Mali-T860 MP4

Memory

DDR3 2G, 4G

Storage

eMMC 8G

LAN

100M/1000M

Wi-Fi

802.11ac

OS

Android 7.1
Environmental

Operating Temperature

-10°C to 40 °C

Operating Humidity

10% to 85%

IP Rating

IP30
Accessories

Included

TBC

Optional

Floor Stand
