Rod Powered Digital Signage Screens for Window Displays

Plug and Play
The Digital Rod Displays come with a built in HD media player, allowing you to update them using a USB memory stick. Load your pictures and videos onto a USB memory stick then insert it into the display, which will copy the files into its internal flash memory. Once you remove the memory stick the screen will then start playing the pictures and videos in a continuous loop.

Digital Light Pockets
Catch the attention of passers-by and potential customers with these 1,000cd/m² high brightness LCD digital light pockets. Ideal for combining with static light pockets in window displays to provide eye-catching motion alongside printed signage.

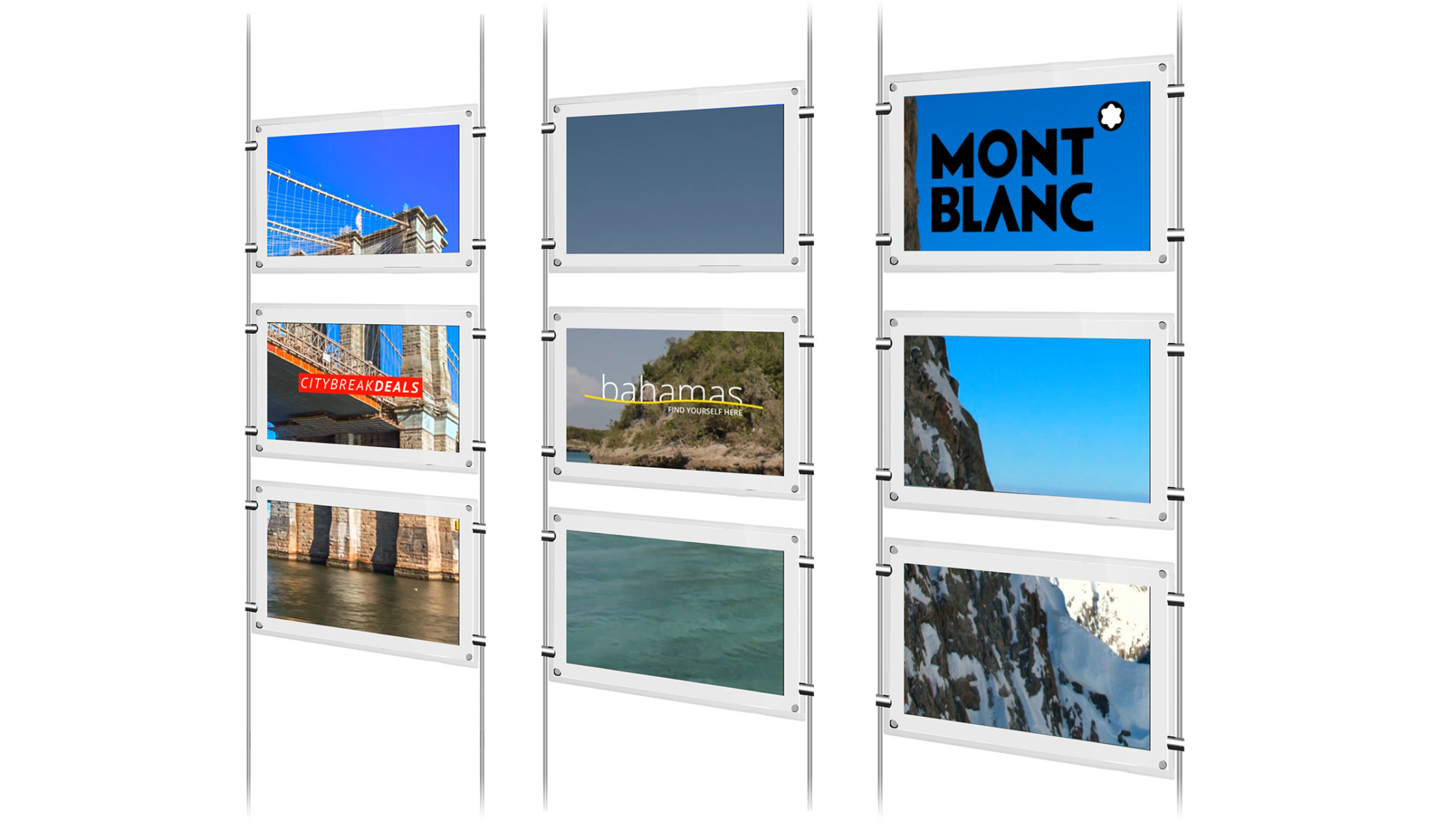

Rod Powered Displays
No mains cable is required to provide power as these innovative screens are powered via the rods on which they are mounted. Achieve a clean and seamless installation with no cables whatsoever for a modern and sleek feel.

1,000cd/m² Brightness
Brightness is paramount when using outward facing screens, these displays use commercial grade high brightness panels (1,000cd/m²); almost 4 times brighter than a standard home TV to allow easy readability in window displays.

LED Frame
The Digital Rod Displays have an attractive LED illuminated bevelled edge to compliment traditional static light pockets seamlessly.

Android Media Player
There is an integrated Android media player inside the screen allowing you to upgrade to a network version without needing any additional hardware. You can also install third party Android apps if required.
SPECIFICATION
[/fusion_text][/fusion_builder_column][fusion_builder_column type=”1_1″ layout=”1_1″ background_position=”left top” background_color=”” border_size=”” border_color=”” border_style=”solid” spacing=”yes” background_image=”” background_repeat=”no-repeat” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”0px” margin_bottom=”0px” class=”” id=”” animation_type=”” animation_speed=”0.3″ animation_direction=”left” hide_on_mobile=”no” center_content=”no” min_height=”none” last=”no” hover_type=”none” link=”” border_position=”all”][fusion_tabs design=”classic” layout=”horizontal” justified=”yes” backgroundcolor=”” inactivecolor=”” bordercolor=”” class=”” id=””][fusion_tab title=”Full Specification” icon=””]
Screen Size
15″
Resolution
1920×1080
Display Area
344×193.5
Aspect Ratio
16:9
Brightness (cd/m²)
1,000
Colour
16.7M
Viewing Angle
178°
Contrast Ratio
5000:1
Speaker Type
5W, 8Ω (x2)
Video
HDMI, VGA
Audio
Audio Socket (3.5mm)
Power Consumption (W)
16
Input Voltage
AC110~240V (50Hz~60Hz)
Unit Size (WxHxD mm)
430x280x49.2* Includes Rear Graphics Pocket
Package Size (WxHxD mm)
348x489x121.5
Net Weight (kg)
3.8
Gross Weight (kg)
5.2
Operating Temperature
0°C to 50°C
Storage Temperature
-30°C to 60°C
Operating Humidity
10% to 80%
Storage Humidity
5% to 95%
Media Formats
Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)
Media Resolution
1920×1080/1080×1920
Internal Memory
6GB
CPU
Quad-Core Cortex-A17@1.61GHz
GPU
Mali-T760 MP4 @600MHz
RAM
2GB DDR3
ROM
8GB NAND
USB
USB2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11b/g/n (Network version screen only)
OS
Android 5.1.1
Graphic Engine
OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1
Included
Scheduling Software, Remote Control, User Manual
Optional
Network Upgrade
[/fusion_tab][/fusion_tabs][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container background_color=”#ffffff” background_image=”” background_parallax=”none” enable_mobile=”no” parallax_speed=”0.3″ background_repeat=”no-repeat” background_position=”center center” video_url=”” video_aspect_ratio=”16:9″ video_webm=”” video_mp4=”” video_ogv=”” video_preview_image=”” overlay_color=”” video_mute=”yes” video_loop=”yes” fade=”no” border_size=”0px” border_color=”” border_style=”solid” padding_top=”0″ padding_bottom=”0″ padding_left=”0″ padding_right=”0″ hundred_percent=”yes” equal_height_columns=”no” hide_on_mobile=”no” menu_anchor=”” class=”” id=””][fusion_builder_row][fusion_builder_column type=”1_1″ layout=”1_1″ background_position=”left top” background_color=”” border_size=”” border_color=”” border_style=”solid” spacing=”yes” background_image=”” background_repeat=”no-repeat” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”0px” margin_bottom=”0px” class=”” id=”” animation_type=”” animation_speed=”0.3″ animation_direction=”left” hide_on_mobile=”no” center_content=”no” min_height=”none” last=”no” hover_type=”none” link=”” border_position=”all”][fusion_accordion divider_line=”no” class=”” id=””][fusion_toggle title=”GALLERY” open=”no”]
[/fusion_toggle][fusion_toggle title=”VIDEO” open=”no”]
[/fusion_toggle][fusion_toggle title=”DOWNLOAD” open=”no”]
Spec Sheet
Technical Drawings
Signage Software
a
[/fusion_toggle][/fusion_accordion][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container background_color=”#ffffff” background_image=”” background_parallax=”none” enable_mobile=”no” parallax_speed=”0.3″ background_repeat=”no-repeat” background_position=”center center” video_url=”” video_aspect_ratio=”16:9″ video_webm=”” video_mp4=”” video_ogv=”” video_preview_image=”” overlay_color=”” video_mute=”yes” video_loop=”yes” fade=”no” border_size=”0px” border_color=”” border_style=”solid” padding_top=”0″ padding_bottom=”0″ padding_left=”0″ padding_right=”0″ hundred_percent=”yes” equal_height_columns=”no” hide_on_mobile=”no” menu_anchor=”” class=”” id=””][fusion_builder_row][fusion_builder_column type=”1_1″ layout=”1_1″ background_position=”left top” background_color=”” border_size=”” border_color=”” border_style=”solid” spacing=”yes” background_image=”” background_repeat=”no-repeat” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”0px” margin_bottom=”0px” class=”” id=”” animation_type=”” animation_speed=”0.3″ animation_direction=”left” hide_on_mobile=”no” center_content=”no” min_height=”none” last=”no” hover_type=”none” link=”” border_position=”all”][fusion_text]
3 Year Commercial Warranty
All of our products come with a full 3 year commercial warranty as well as lifetime technical support. Our products are commercially graded and designed to run 24/7 in public spaces.
10 Year Anniversary
Established in Ireland in 2009 McDonnell IT LTD T/A Interactive Displays Ireland have become a leader in innovative Digital Signage solutions. Using our decade of industry expertise we work closely with our customers to ensure that we provide turnkey solutions
